FFP Provides pilot Slurry Testing on site in our lab. we are able to offer various types of filter press pilot press units for rent.

CAPACITY AND DIMENSIONAL DATA FOR FILTER PRESSES

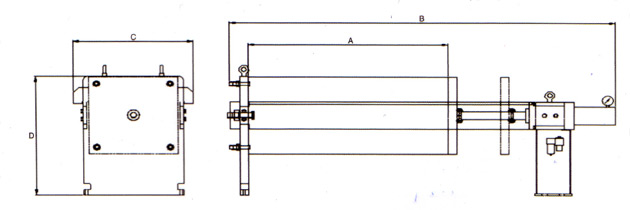

470mm FILTER PRESS - SIDEBAR STYLE - 100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	PRESS HEIGHT D	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	LBS.
4	0.7	14.7	11	38	38	34	1,000
8	1.3	29.4	19	46	38	34	1,100
12	2.0	44.1	28	55	38	34	1,200
16	2.6	58.8	37	64	38	34	1,300
20	3.3	73.4	45	72	38	34	1,400

630mm FILTER PRESS - SIDEBAR STYLE - 100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDT C	PRESS HEIGHT D	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	LBS.
4	1.3	26.5	11	76	45	42	2,105
8	2.5	53.0	20	85	45	42	2,257
12	3.8	79.6	30	94	45	42	2,409
16	5.0	106.1	39	103	45	42	2,561
20	6.3	132.6	48	112	45	42	2,713
24	7.6	159.1	57	122	45	42	2,865
28	8.8	185.7	66	131	45	42	3,017

800mm FILTER PRESS - SIDEBAR STYLE - 100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	PRESS HEIGHT D	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	LBS.
10	5.4	110.8	25	91	51	48	5,078
14	7.6	155.1	34	100	51	48	5,326
18	9.8	199.5	43	109	51	48	5,574
22	11.9	243.8	52	118	51	48	5,822
26	14.1	288.1	61	127	51	48	6,070
30	16.3	332.4	70	136	51	48	6,318
34	18.4	376.7	80	145	51	48	6,566
38	20.6	421.1	89	155	51	48	6,814
42	22.8	465.4	98	164	51	48	7,062
46	25.0	509.7	107	173	51	48	7,310

ABOVE CALCULATIONS BASED ON POLYPROPYLENE PLATES WITH 1 1/4'' CAKE THICKNESS DIMENSIONS AND WEIGHTS ARE ONLY ESTIMATED AND NOT FOR CONSTRUCTION PURPOSES

CAPACITY AND DIMENSIONAL DATA FOR FILTER PRESSES

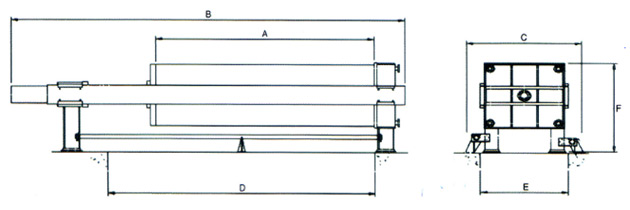

1000mm FILTER P RESS - SIDEBAR STYLE -100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
20	18.3	352.9	50	146	68	80	56	65	15,050
30	27.5	529.4	74	170	68	104	56	65	16,200
40	36.7	705.9	98	194	68	128	56	65	17,350
50	45.9	882.4	122	218	68	152	56	65	18,500
60	55.0	1058.8	146	242	68	176	56	65	19,650
70	64.2	1235.3	170	266	68	200	56	65	20,800

1200mm FILTER PRESS - SIDEBAR STYLE - 100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
30	41.5	783.4	77	173	72	107	63	74	23,550
40	55.3	1044.6	101	197	72	131	63	74	25,200
50	69.1	1305.7	126	222	72	156	63	74	26,850
60	83.0	1566.9	151	247	72	181	63	74	28,000
70	96.8	1828.0	175	283	72	211	63	74	29,650
80	110.6	2089.2	200	308	72	236	63	74	31,300
90	124.4	2350.3	226	333	72	261	63	74	32,950
100	138.3	2611.4	250	370	72	292	63	74	35,400
110	152.1	2872.6	274	394	72	316	63	74	37,250
120	165.9	3133.7	299	419	72	341	63	74	39,100

1500mm FILTER PRESS - SIDEBAR STYLE - 100 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
40	82.5	1584.6	109	225	84	139	75	85	51,000
50	103.1	1980.7	136	252	84	166	75	85	53,750
60	123.7	2376.9	163	291	84	199	75	85	56,500
70	144.3	2773.0	189	317	84	225	75	85	59,250
80	164.9	3169.2	216	344	84	252	75	85	62,000
90	185.6	3565.3	243	371	84	279	75	85	64,750
100	206.2	3961.4	270	406	84	312	75	85	67,500
110	226.8	4357.6	296	432	84	338	75	85	70,250
120	247.4	4753.7	323	459	84	365	75	85	73,000
130	268.0	5149.9	350	486	84	392	75	85	75,750
140	288.6	5546.0	376	512	84	418	75	85	78,500

ABOVE CALCULATIONS BASED ON POLYPROPYLENE PLATES WITH 1 1/4" CAKE THICKNESS DIMENSIONS AND WEIGHTS ARE ONLY ESTIMATED AND NOT FOR CONSTRUCTION PURPOSES

CAPACITY AND DIMENSIONAL DATA FOR FILTER PRESSES

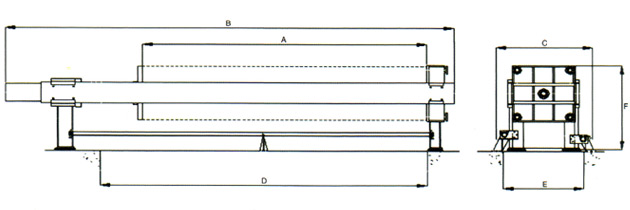

1000mm FILTER PRESS - SIDEBAR STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
20	18.3	365.0	54	174	68	84	56	65	19,326
30	27.5	547.6	79	200	68	109	56	65	20,736
40	36.7	730.1	105	225	68	135	56	65	22,146
50	45.9	912.6	130	251	68	160	56	65	23,556
60	55.0	1095.1	156	276	68	186	56	65	24,966
70	64.2	1277.6	181	302	68	211	56	65	26,376

1200mm FILTER PRESS - SIDEBAR STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
30	37.4	777.0	85	202	73	119	63	74	23,703
40	49.8	1035.9	113	230	73	147	63	74	26,303
50	62.3	1294.9	140	257	73	174	63	74	28,903
60	74.8	1553.9	168	285	73	202	63	74	31,503
70	87.2	1812.9	195	312	73	229	63	74	34,103
80	99.7	2071.9	223	352	73	263	63	74	36,703
90	112.1	2330.9	250	379	73	290	63	74	39,403
100	124.6	2589.8	277	407	73	317	63	74	42,103
110	137.1	2848.8	305	434	73	345	63	74	44,803
120	149.5	3107.8	332	462	73	372	63	74	47,503

1500mm FILTER PRESS - SIDEBAR STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
40	80.9	1626.9	126	268	84	160	75	85	38,695
50	101.2	2033.6	156	299	84	190	75	85	42,815
60	121.4	2440.4	187	341	84	227	75	85	46,935
70	141.6	2847.1	217	372	84	257	75	85	51,055
80	161.8	3253.8	248	402	84	288	75	85	55,175
90	182.1	3660.6	279	433	84	319	75	85	59,295
100	202.3	4067.3	309	464	84	349	75	85	63,415
110	222.5	4474.0	340	494	84	380	75	85	67,535
120	242.8	4880.7	371	525	84	411	75	85	71,655
130	263.0	5287.5	401	556	84	441	75	85	75,775
140	283.2	5694.2	432	586	84	472	75	85	79,895

ABOVE CALCULATIONS BASED ON POLYPROPYLENE PLATES WITH 1 1/4" CAKE THICKNESS DIMENSIONS AND WEIGHTS ARE ONLY ESTIMATED AND NOT FOR CONSTRUCTION PURPOSES

CAPACITY AND DIMENSIONAL DATA FOR FILTER PRESSES

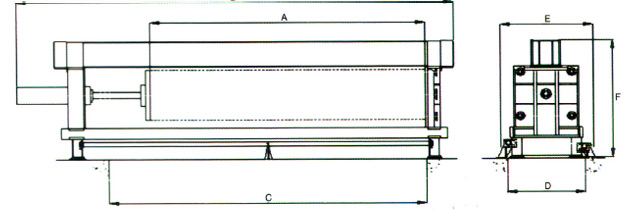

1000mm FILTER PRESS - OVERHEAD STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
20	18.3	365.0	54	158	84	56	68	98	18,392
30	27.5	547.6	79	183	109	56	68	98	20,092
40	36.7	730.1	105	209	135	56	68	98	21,792
50	45.9	912.6	130	234	160	56	68	98	23,492
60	55.0	1095.1	156	260	186	56	68	98	25,192
70	64.2	1277.6	181	285	211	56	68	98	26,892

1200mm FILTER PRESS - OVERHEAD STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
30	37.4	777.0	85	204	119	63	73	110	27,200
40	49.8	1035.9	113	232	147	63	73	110	30,140
50	62.3	1294.9	140	259	174	63	73	110	33,080
60	74.8	1553.9	168	287	202	63	73	110	36,020
70	87.2	1812.9	195	314	229	63	73	110	38,960
80	99.7	2071.9	223	354	263	63	73	110	41,900
90	112.1	2330.9	250	381	290	63	73	110	45,150
100	124.6	2589.8	277	408	317	63	73	116	48,400
110	137.1	2848.8	305	436	345	63	73	116	51,650
120	149.5	3107.8	332	463	372	63	73	116	54,900

1500mm FILTER PRESS - OVERHEAD STYLE - 225 PSI OPERATING PRESSURE
NUMBER OF CHAMBERS	CAKE CAPACITY	FILTER AREA	PACK LENGTH A	PRESS LENGTH B	PRESS WIDTH C	FLOOR OPENING D	FLOOR OPENING E	PRESS HEIGHT F	APPROX. WEIGHT w/o CAKE
	CU. FT.	SQ. FT.	INCHES	INCHES	INCHES	INCHES	INCHES	INCHES	LBS.
40	80.9	1626.9	126	274	160	75	84	131	61,008
50	101.2	2033.6	156	304	190	75	84	131	65,878
60	121.4	2440.4	187	347	227	75	84	131	70,748
70	141.6	2847.1	217	378	257	75	84	131	75,618
80	161.8	3253.8	248	408	288	75	84	131	80,488
90	182.1	3660.6	279	439	319	75	84	137	84,358
100	202.3	4067.3	309	469	349	75	84	137	89,478
110	222.5	4474.0	340	500	380	75	84	137	94,598
120	242.8	4880.7	371	531	411	75	84	137	99,718
130	263.0	5287.5	401	561	441	75	84	137	104,838
140	283.2	5694.2	432	592	472	75	84	137	109,958

ABOVE CALCULATIONS BASED ON POLYPROPYLENE PLATES WITH 1 1/4" CAKE THICKNESS DIMENSIONS AND WEIGHTS ARE ONLY ESTIMATED AND NOT FOR CONSTRUCTION PURPOSES
